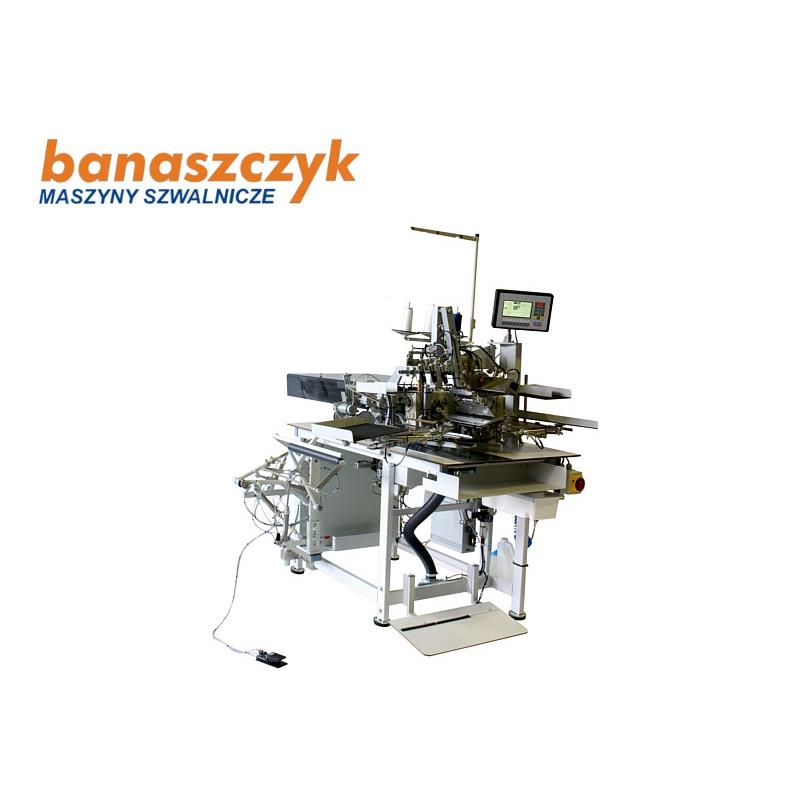

ASS BASS 3500 TJ automatic pocket welt unit-premium version


ASS_BASS3500T/J/KPL

ASS

New product


The BASS 3500 is the premium version of an automatic pocket welt unit. Performance.The sewing unit has all the functions of the universal automatic unit BASS 3200:-•...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

The BASS 3500 is the premium version of an automatic pocket welt unit.

Performance.

The sewing unit has all the functions of the universal automatic unit BASS 3200:
-• Processing programs for all common pocket flies with or without flaps
•- Separate stepper motor drives for transport unit, corner knife and center knife

In addition, the unit has a versatile automatic feed system for accessories to support the processing of straight and bevelled inner and outer jacket pockets and of pocket flies for trousers.

Functions:
•- Freely programmable control with memory for 40 seams
•- Processing of pocket flies with a length of 20 to 200 mm, optionally with a length of up to 240 mm
•- Needle spacing in 2 mm increments from 8 mm to 30 mm
•- Individual programming for stitch length, sewing speed and transport speed with
optional programming capability for stitch condensation or seam bar tacking
•- Automatic flap scan by photocell
•- Five separately programmable laser marks to ensure accurate and easy line-up of
sewing pieces
-• Separate piping cutting unit and automated transfer unit for accessories


Operating sequence.
Inner pockets for jackets:
The piping strip with fleece reinforcement is lined up at the ruler stop. The two pocket pouches are secured with a clamp at the left and right tray. The piping cut is set with the pressing of a button. The feeding of sewing pieces, the sewing of the pocket pouch components and the subsequent sewing process are fully automated.

Outer pockets for jackets:
The piping cutting unit is located at the right side. The double-piping strip is lined up at the ruler stop. The cutting function for the piping strip is started with the pressing of a button. The feeding of sewing pieces, the positioning of the accessories and the subsequent sewing process are fully automated.

Finished pieces are removed by the roller and stacked at the stacker (201/6) for further processing.



Standard features:
-• BASS 3500 / T: Trousers pockets
Piping strip feed from left side. The automatic transfer unit for flaps,
pocket pouches or edge strips are located at the right side
•- BASS 3500 / J: Jacket pockets (optional)
Piping strip feed from right side, automatic transfer unit for accessories from left side
-• Two-needle double lockstitch sewing head, can be tilted for service
•- Thread trimming device
•- Efka Direct Drive motor AB286
Power: 220 V AC, 50/60 Hz
•- Microprocessor control with LCD display and memory chip for data backup
•- Main clamp and corner cutting through step motor
•- Corner cutting adjustment by up to 10 mm in increments of 0.1 mm
•- Lateral corner knife adjustment through excenter
•- Corner knife holder with adjustable cutting width
•- Lowering sequence of the transfer clamp programmable, clamp backfeed inhibitor
•- Each seam start and end can be programmable with back tack or condensed stitches
•- Double piping attachment
•- Needle thread monitor
•- Bobbin rest thread sensor
