Band knife machine R750/AIR-BLOW


R750/NADMUCH

REXEL

New product


Band knife machine Rexel R750 it’s easy to use and highly productive equipment. It has high precision cutting of textile materials (cotton, knitted fabrics, synthetic...

More details

This product is temporarily unavailable.

14 500,00 zł tax excl.
17 835,00 zł tax incl.

Add to wishlist

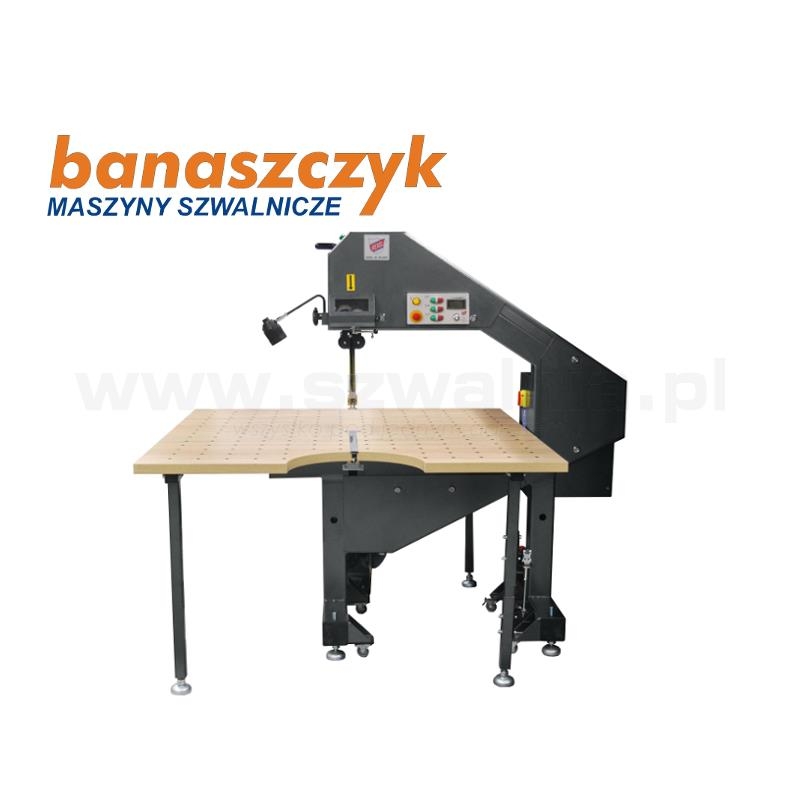

Band knife machine Rexel R750 it’s easy to use and highly productive equipment. It has high precision cutting of textile materials (cotton, knitted fabrics, synthetic fabrics, insulation, etc.). Multiple layers of fabric can be cut by Rexel R750 (thickness up to 200 mm, some insulation up to 300 mm). Maximum and minimum thickness depends on type of the material.
Band knife machine can be used as a standalone workstation or with a cutting table Rexel SK-3.
Band knife machine Rexel R750 is very easy to operate and is equipped with a grinding device, which provides high quality sharpening with minimal wear of band knife.
Variable speed control allows you to set any appropriate speed for all types of materials. Rexel R750 is equipped with the special detector (responsible for the work of band knife blade) and the band knife security system (protects band knife blade from escape from the course).
Machine is equipped with a lamp with separate switch. Also it is equipped with a mechanical tape catcher. Thank to this solution working with band knife machine become to be more safety.
The blowing from table top makes the airspace under the fabric what facilitates the maneuvering of it. Air channels is supplied the air flow only to the part where the material situated. It helps to avoid getting dust and scraps of material in air channels.

Specifications:

  • Cutting capacity: maximum 250 mm
  • Table size: 1500 x 1500 mm
  • Band length: 3800 mm x12mm x 0,45 mm
  • Arm length: 750 mm
  • Power supply: 400 V/ 50
  • Motor: 1.5 kW
  • Air blowing table top
  • Variable speed control
  • Band knife security system
  • The lamp
  • Grinding device
  • Additional option: Vacuum cleaner
