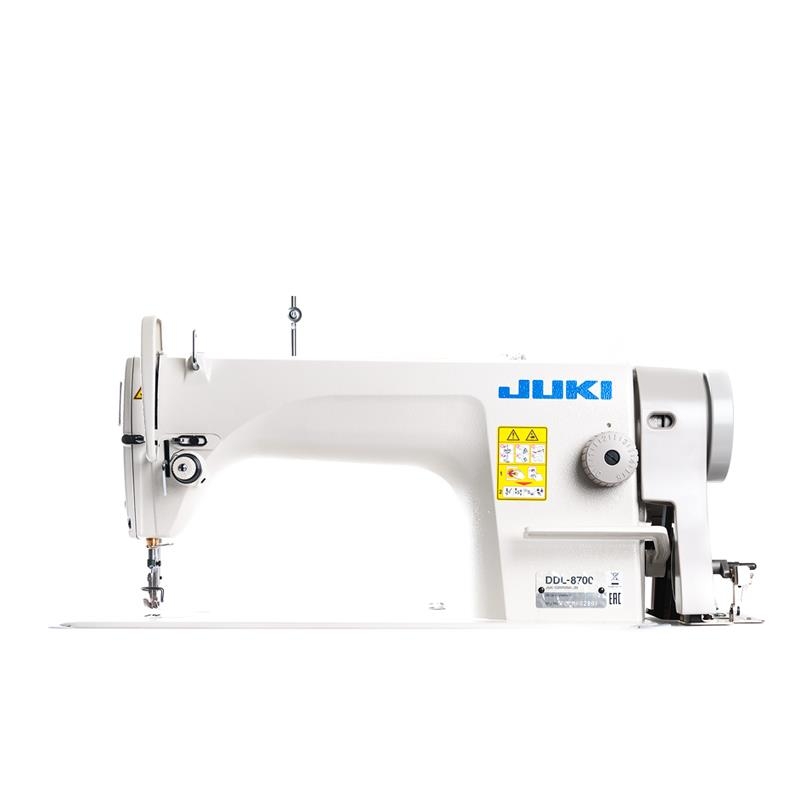

DDL8700H/YGF JUKI DDL 8700H single needle lockstich machine


DDL8700H/YGF

JUKI

New product


Compact very popular in its class 1-needle lockstitch bottom transport ząbkowym, dedicated to sewing heavy materials - Type H, used eg. In the process of sewing...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

Compact very popular in its class 1-needle lockstitch bottom transport ząbkowym, dedicated to sewing heavy materials - Type H, used eg. In the process of sewing leather labels. Equipped with a super energy-efficient motor which minimizes electricity consumption in your plant.

Engine properties:
The engine starts and stops immediately allowing to save up to 71% energy compared to the engine clutch. Aligning power output: the output power of the motor is automatically adjusted to the needs of sewing machine which translates to much lower power consumption.

Technical parameters:
- Central lubrication
- Servo motor
- Stitch length: 5 mm
- Maximum speed: 5 500 stitches / minute
- Lifting the needle bar: 30.7 mm
- Lifting feet: 5.5 / 13 mm
- A system of needles: 134X5


Technical Specifications of motor:
- Power supply: 230 V (+/- 10 V) 50-60 Hz
- Speed: 0 - 5000 rpm. / Min
- Power: 550 W
- Start time: 0.2 seconds


We offer fully equipped, ready to work kit, which includes:
- Head machine
- Stand and table top
- Engine energy-saving
- Drawer
- Additional Accessories
- Manual in Polish and English language, warranty
