DYDB-3 automatic end cutter


DYDB-3

DAYANG/OCEAN

New product


Full Auto End Cutter Single man operation, machine head returns automatically. Single man operation, machine head automatically. The guiding trail is fitted with 4...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

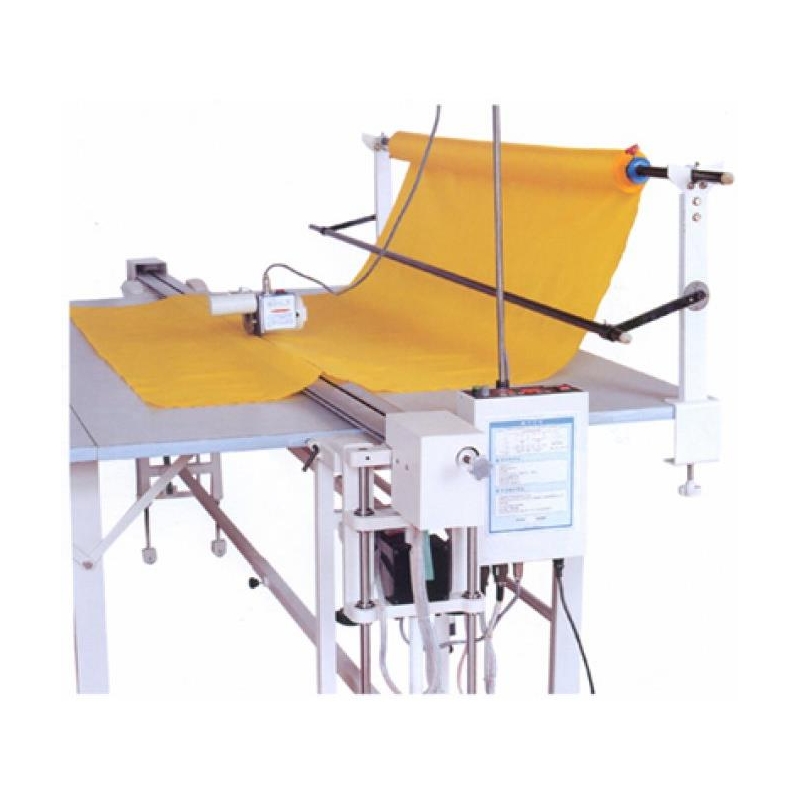

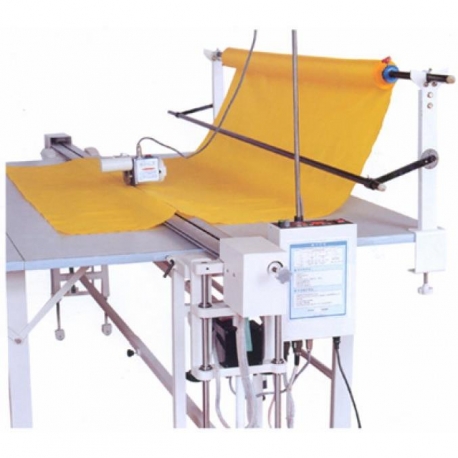

Full Auto End Cutter Single man operation, machine head returns automatically.

Single man operation, machine head automatically. The guiding trail is fitted with 4 imported mini bearing; No swinging wire, no breaking wire avoided on the support of spring power wire point. It is simple to operate, saving time, man power and material.

The blade base made of special steel is not easy to wear; the high rotating speed motor can grind the blade automatically in single direction, automatic layer counting display.
Press the cloth simultaneously, cut off automatically to avoid the dislocation of of accessory materials.

Appropriate products
Textiles:
- cotton,
- line,
- silk,
- wind coat cloth,
- raincoat cloth and others;

Artificial fibers:
- nylon,
- teteron,
- T/C,
- T/R,
- canvas and others.

Plastics:
- plastic cloth,
- plastic film,
- plastic leather and other.


Technical parameters:
- Voltage: 110V/220V 50HZ/60HZ
- Power: 200W
- Rotation speed: 12000 rpm
- cutting speed: 1 m/s
- Knife shape: round
- Rail length: 2.6 m
