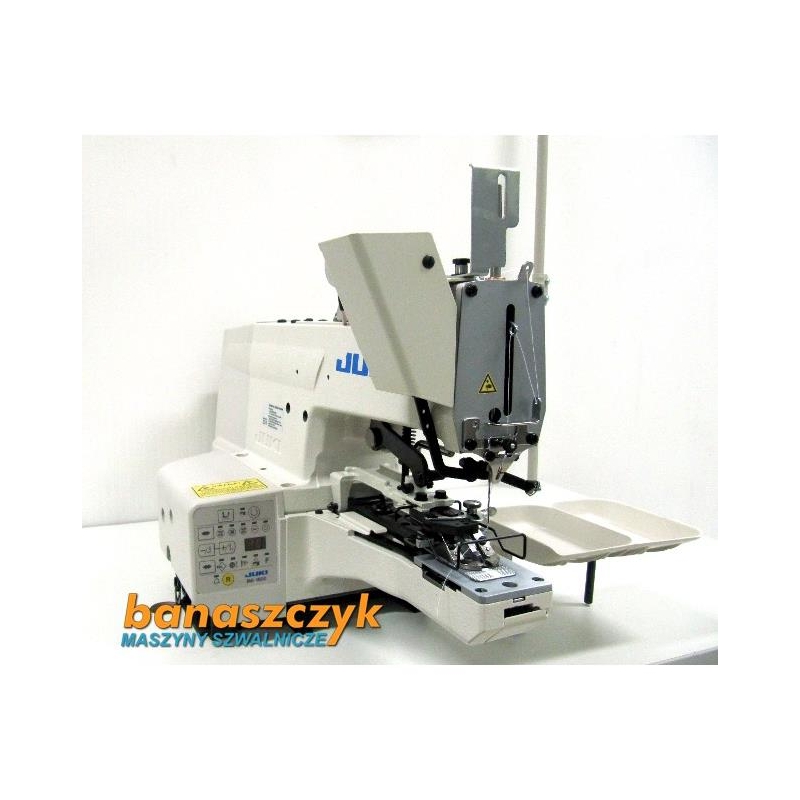

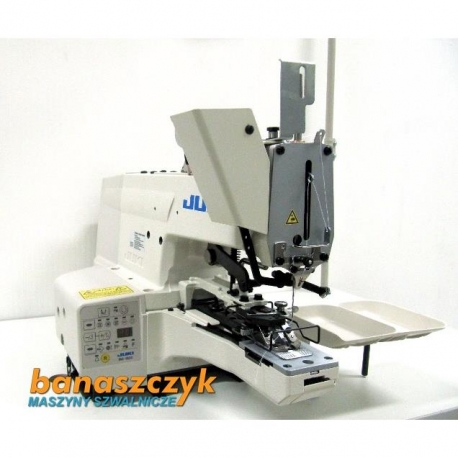

JUKI MB1800B/KPL high speed button attaching machine


MB1800B/KPL

JUKI

New product


1 Button sewing-thread, chainstitch, electronically controlled. Infinitely adjustable distance between the holes in the button. Normally available 50 programs - types and...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

1 Button sewing-thread, chainstitch, electronically controlled. Infinitely adjustable distance between the holes in the button. Normally available 50 programs - types and designs stitching. The choice of method of sewing is done on a simple-to-use control panel


Technical data:
- Maximum sewing speed - 1800 rev. / Min.
- The size of buttons - 10 - 28 mm
- Thickness buttons - 1.8 - 5 mm
- Different types of fastening a button (eg X, Z, -, triangle and others)
- wiper
- 48.6 mm needle bar stroke
- A system of needles TQx7
- Transport carried out by a stepper motor
- Electronic control panel allows you to change the type of button



We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- drawer
- Additional Accessories
- User's Guide
