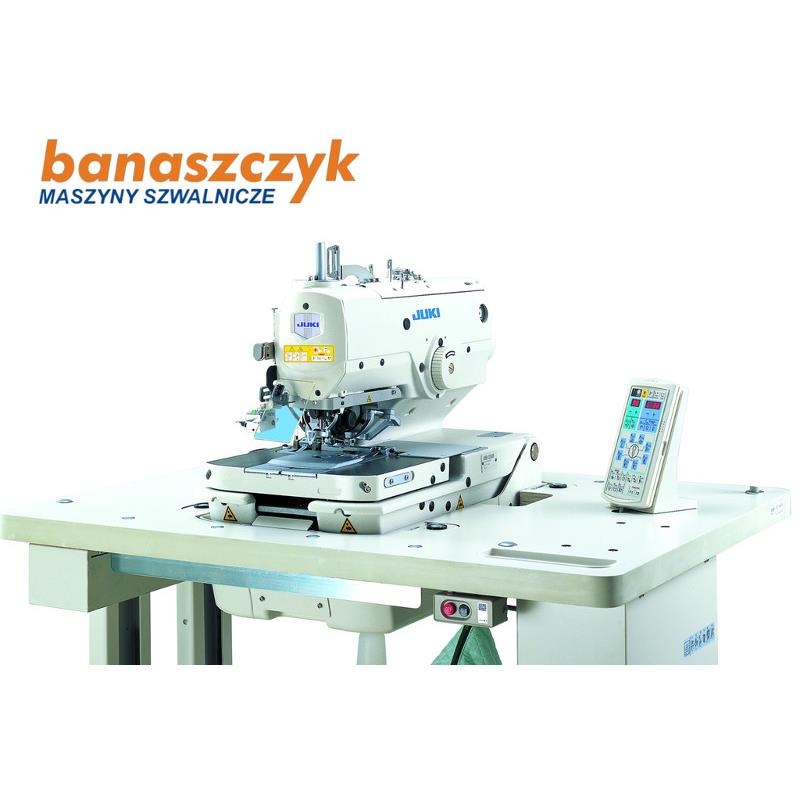

JUKI MEB3200JSMA buttonhole machine for jeans


MEB3200JSMA/KPL

JUKI

New product


Computer-controlled, 2-thread eyelet chain-stitch with automatic thread trimmer, designed to sewing button holes in jeans weare. Machine equipped with servo motor...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

Computer-controlled, 2-thread eyelet chain-stitch with automatic thread trimmer, designed to sewing button holes in jeans weare.

Machine equipped with servo motor built into the head of the machine and stepper motors control the various mechanisms. All parameters, among others, the type and size of holes, cutting method, thread tension, sewing speed, are programmed by means of modern, legible control panel. For each type of hole can be individually programmed shape, width, mesh size, type of cut, etc. Active tensioner thread, programmable panel allows you to set stress independently for different pieces of one hole. The function of the cyclic programmable sewing several different types of holes, so that odszywamy holes present in the device without additional adjustments. Fast replacement of the hole, without harsh mechanical adjustment, giving the machine character ideal for producing short series, with highly variable patterns. Construction of head body allows the longitudinal odszywanie holes for long parts.


Technical parameters:
- Speed: 400 - 2 200 rev / min (from step 100)
- Buttonhole length: 10-38 mm
- A needle: 2.3 mm
- The length of the bolt tapering: 0, 3 -15 mm
- The height of lifting clamps: 13 mm
- A system of needles: DOx558
