MAX F600 Fusing machine 600mm


MAX_F600

MAX

New product


Fusing machine with 60cm working width and with one side open. Continuous work, belt fusing machine,working width 600 mm, with one side open, equipped with two tables...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

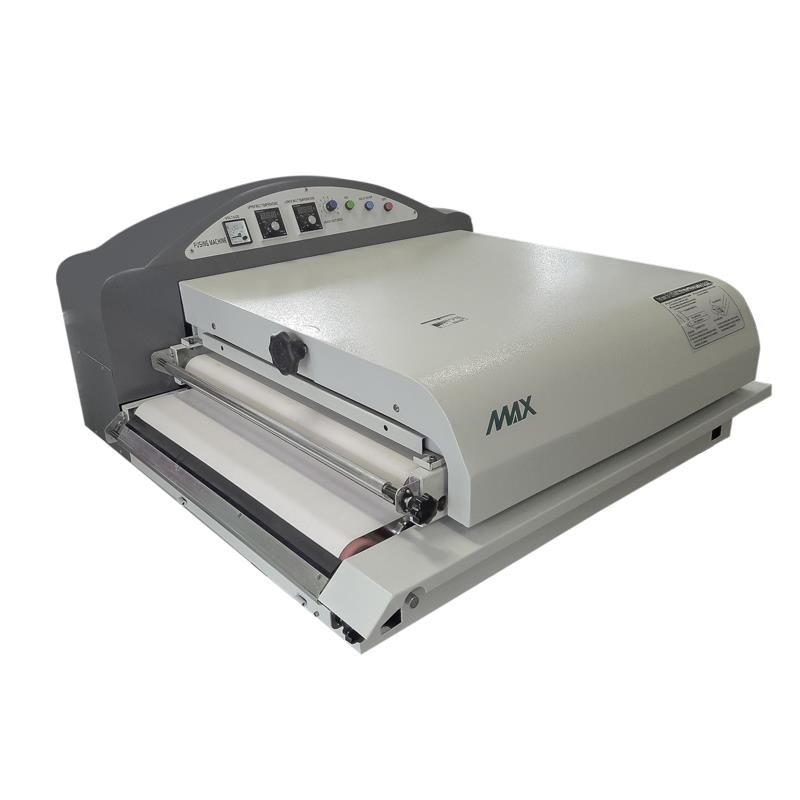

Fusing machine with 60cm working width and with one side open.

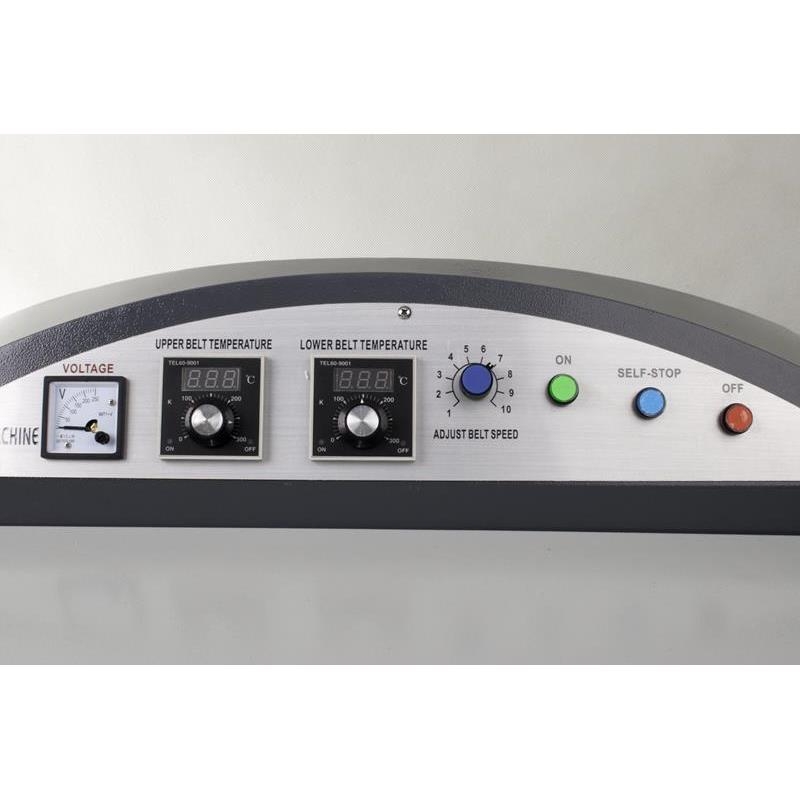

Continuous work, belt fusing machine,working width 600 mm, with one side open, equipped with two tables (in-table and out-table) and stand on wheels. Maximum heating element power 6kW, fully adjustable temperature up to 220C, temperature is regulated by two independent thermostats. Adjustable heating time (belt speed) form 0 to 10 m/min. Maximum pressure is 3kg/cm2. Machine is equipped with delay-off system for prevent teflon belt damage.

Technical data:
Power supply: 380V / 50Hz
Motor power: 600 W
Heating element power: 6 kW
Preassure: 0~3 kg/cm kw.
Speed: 0~10 m/minTemperature: 220 st. C [max]
