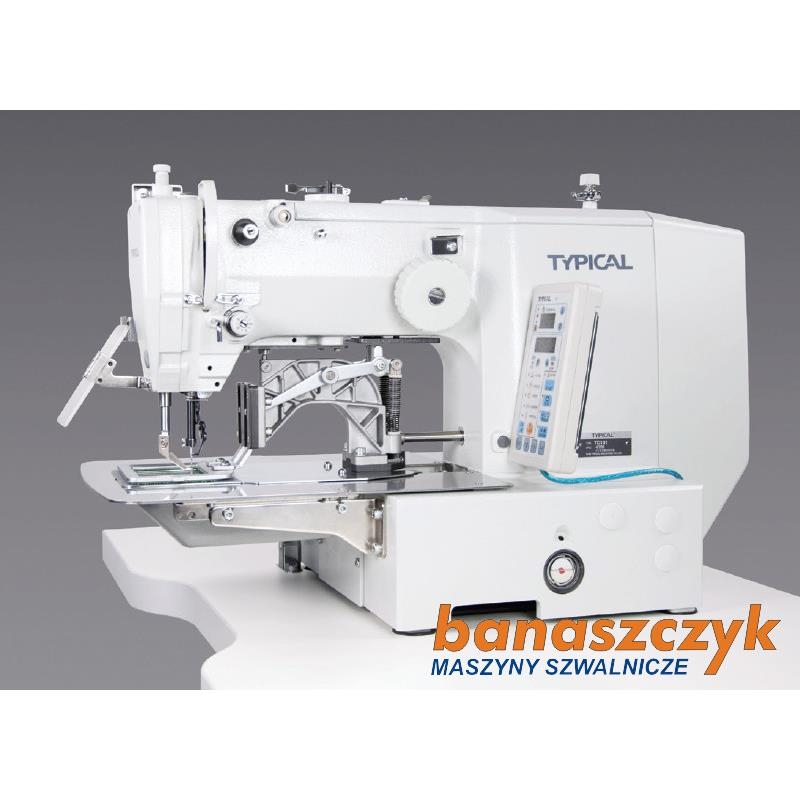

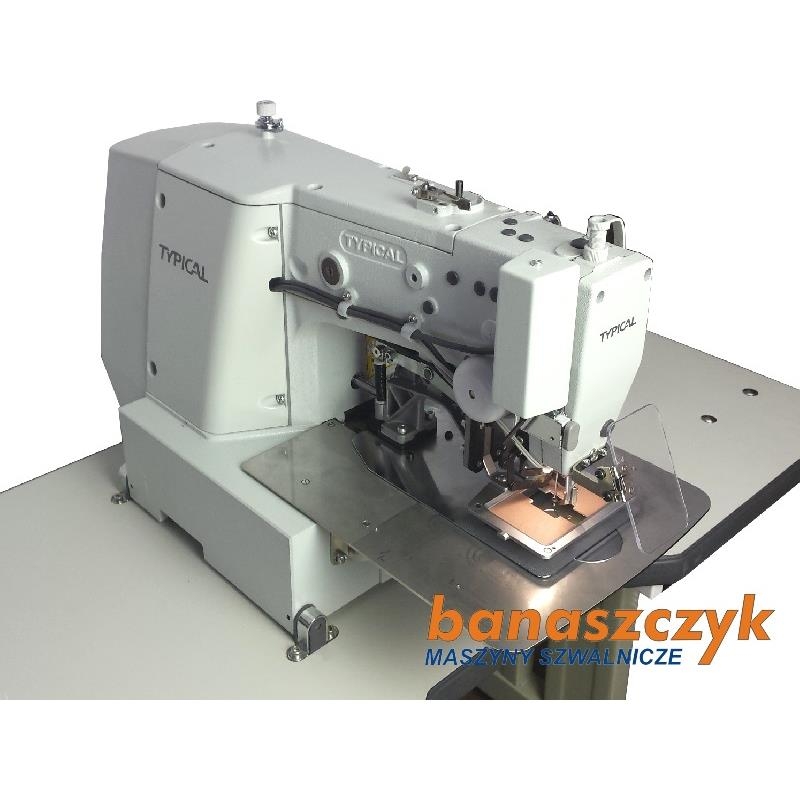

TC131-0907 programmable electronic pattern sewer, area 90x60mm


TC131-0906/KPL

TYPICAL

New product


Free programmable pattern sewing machine for light to medium weight materials with sewing area 90*60mm Technical Data:- Stitch type 301- Max. sewing speed 2,700 spm.- Max....

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

Free programmable pattern sewing machine for light to medium weight materials with sewing area 90*60mm

Technical Data:
- Stitch type 301
- Max. sewing speed 2,700 spm.
- Max. stitch length 0.1-12.7 mm
- Direct-drive mini-motor on main shaft (220-230 V)
- X-Y-Movement controlled by stepping motors
- Memory capacity up to 2 MB (about 400,000 stitches)
- Vibrating presser foot is adjustable according to material thickness
- Sewing programs can be easily transfered by a SD Memory Card
- Fully automatic oil pump lubrication system
- Needle system: 135x17 / DPx5 (90x140)
- Medium size latch type hook
- Max. presser foot lifting: 5mm
- Max. work clamp lifting
- Sewing area: 9x6 cm
- Thread trimming and wiper
- Power supply: 230V/50Hz
- Weight: 250kg
- patterns can be programmed for special software (not included)

Here you can see working machine: https://youtu.be/HI3Q72WUoCI
