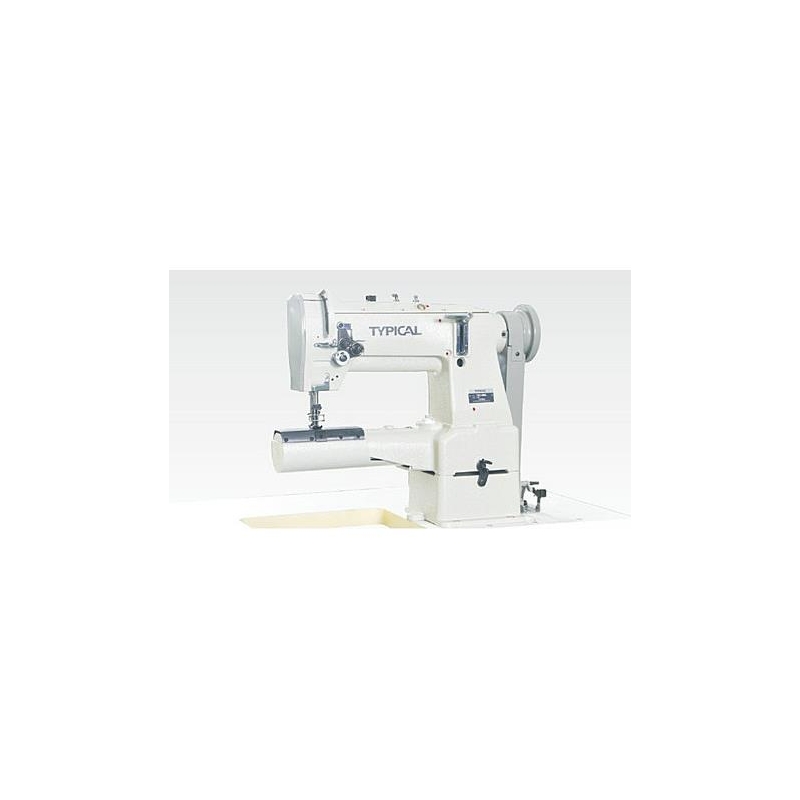

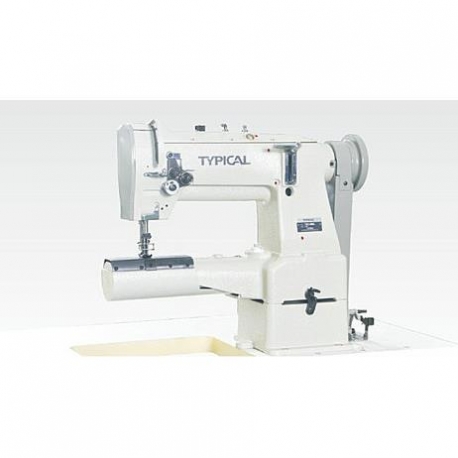

TYPICAL TW3-18BL lockstitch cylindrical single needle with unison equipped with large hook


TW3-18BL/KPL

TYPICAL

New product


Single needle lockstitch cylindrical with unison equipped with large hook Characteristics:- Triple material transport- Hook on vertical shaft- Safety clutch- Semi-automatic...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

Single needle lockstitch cylindrical with unison equipped with large hook

Characteristics:
- Triple material transport
- Hook on vertical shaft
- Safety clutch
- Semi-automatic lubrication system

Specifications:
- Stitch length: 8 mm
- Maximum speed: 2000 stitches / min.
- Lifting the needle bar: 33.2 mm
- Lifting feet: 8.5 / 14 mm
- A system of needles: DPX17 14 ~~ 24 #
- Working surface: 258 x 110 mm
- Arm diameter: 77 mm


We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- drawer
- Additional Accessories
- User's Guide
