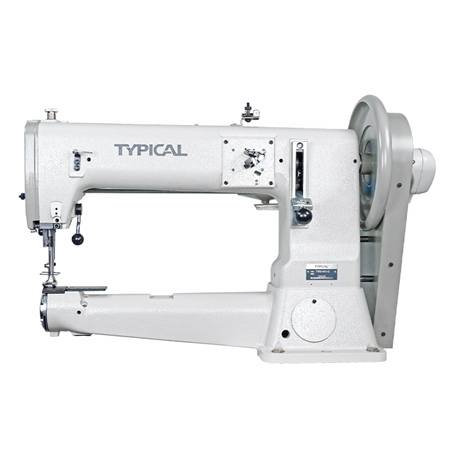

TYPICAL TW3-441 typical cylinder arm, triple transport extra heavy duty machine


TW3-441/KPL

TYPICAL

New product


With unison feed lockstitch cylinder bed, equipped with a large hook swinging (ie. "Duck"). The machine is designed for very thick stitching Characteristics:- Very strong...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

With unison feed lockstitch cylinder bed, equipped with a large hook swinging (ie. "Duck"). The machine is designed for very thick stitching

Characteristics:
- Very strong material transport system (foot, cloves, needle)
- Large catchers swinging
- Very high lifting foot and needle
- A large working surface, facilitating material handling

Technical data:
- Maximum sewing speed 800 stitches per minute
- Maximum stitch length: 11 mm
- The needles: DYx3 # 180-250
- Lift height needle: 56 mm
- Lifting height feet: 13/25 mm
- The thickness of thread: 8
- Size: 405 x 167 mm


We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- drawer
- Additional Accessories
- User's Guide
