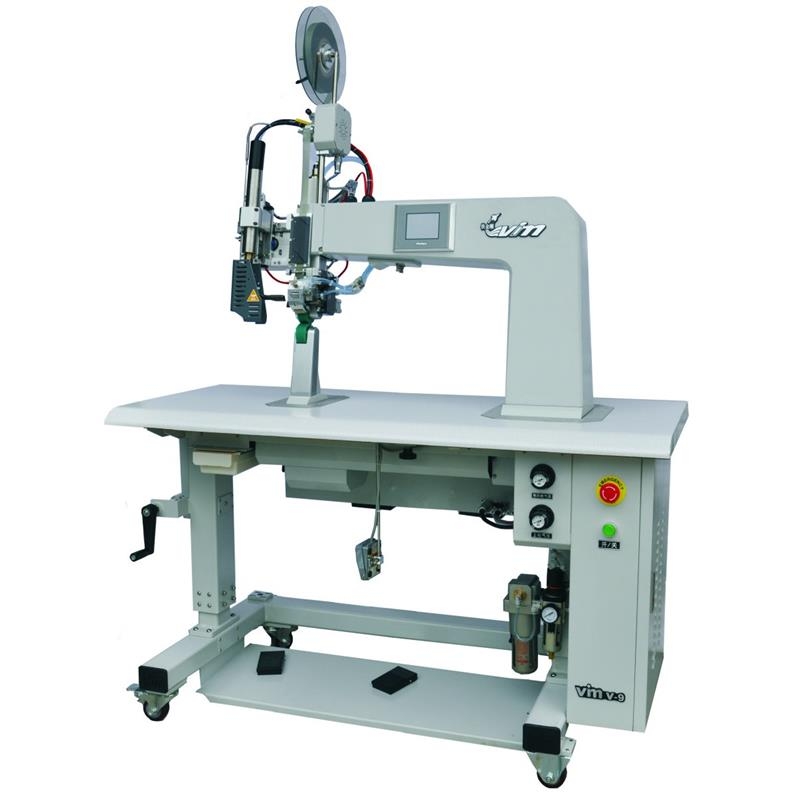

VIM V-9 hot air seam sealing machine


VIM_V-9/KPL

VIM

New product


High-performance V-9 machine with electronic control is used to seal seams. Water resistance seam is obtained by gluing on a previously formed seam special tape by hot air....

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

High-performance V-9 machine with electronic control is used to seal seams. Water resistance seam is obtained by gluing on a previously formed seam special tape by hot air. The machine is equipped with a microcomputer and a touch panel which allows you to set all operating parameters. The technology used allows, among others, to adjust the nozzle position in three dimensions, the automatic deceleration of the belt and varying the speed of the top and bottom. The machine has a robust and durable construction, large workspace is easy to use and convenient to maintain.

The strip used very well sealed and is suitable for clothing of high and mid-range water resistance, and in particular for the production of clothing requiring three layers of sealing tape.


The machine features:
- Multifunctional touch screen with clear display speed, temperature and stage work
- Automatic speed control, temperature and operation of the machine by a microcomputer; You can save a selected program
- The ability to adjust the length of the tape from the microcomputer
- Positioning system of the nozzle in three dimensions (3D)
- To maintain the set temperature - permissible fluctuations of ± 2C; Security temperature alarm heating pipes
- Air-cooled heat pipe, which protects the user and increases the life of the machine
- Automatic release mechanism, administration (move) and cutting the tape
- Big arm with an option to adjust the angle; a working table with the option of raising and lowering
- Key elements and mechanisms of the machine are imported and are characterized by the highest quality.

Technical data:
- AC Power Source 220V, 60Hz 50 ~~
- Power 3 300 W
- Temperature of the air volume in the range 0 ~~ 7000C
- Pressure of the compressed air stream ~~ .35 0.5 MPa
- The speed of the work roll 1 ~~ 25 m / min. variable; 2 ~~ 25 m / min. Optional
- The air pressure in the nozzle ~~ .03 0.3 MPa optionally
- The width of the nozzle 23mm standard
- Guide the top roller 0 ~~ 1 MPa optional
- Roll width 25mm optional
- The width of the sealing tape 14 ~~ 22 mm optional
- Height of upper rolls 18 ~~ 25 mm
- Nozzle move, and the movement of the rollers is adjusted to prevent gaps seal

We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- Drawer
- Additional Accessories
- User's Guide
