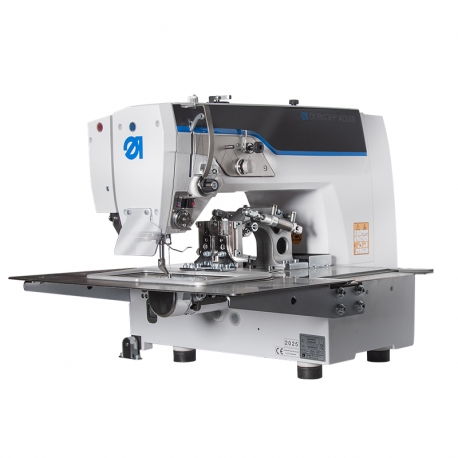

Durkopp Adler 910 – fully digitalized industrial sewing automaton

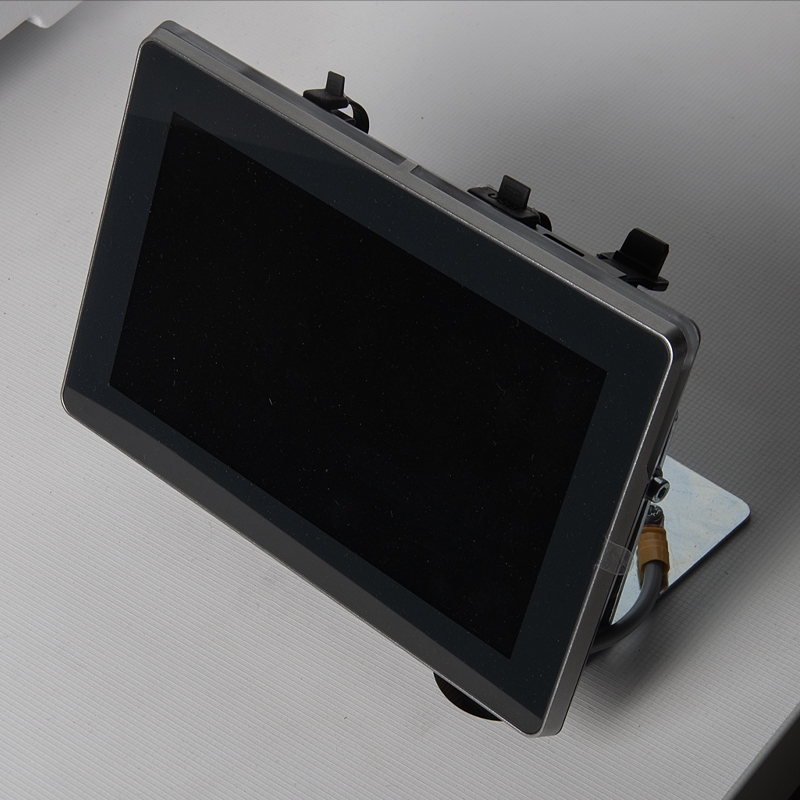

The Dürkopp Adler 910 is a fully digitalized industrial sewing automaton designed for modern, high-efficiency production. Its intuitive “Commander Delta” touch panel enables on-machine creation of sewing programs in “Teach-In” and “Draw” modes, supported by integrated CAD and DXF import. Operator comfort and security are enhanced by NFC login and personalized user profiles. Built-in sensors for thread breakage and optional lower thread-end detection automatically stop the machine in case of issues. The DAC flex interface ensures easy integration into automation environments.

Technical Specifications:

Stitch length: 0.1 – 12.7 mm
Max. speed: up to 2800 stitches/min
Sewing field sizes: 150×100, 220×100, 260×150, 300×200 mm
Hook type: oscillating (horizontal), rotary Ø26 mm or Ø32 mm
Thread tension system: MTT (mechanical), ETT (electrical), METT (mech-electrical)
Thread trimming: 5 mm
Clearance / foot lift: 10 mm / 22 mm
Needle system: 134-35
Needle sizes: 90–180 (depending on field)
Thread types: 80/3 – 20/3 or 13/3*
Machine dimensions: 590–810 × 1200 × 1280 mm
Voltage: 230 V
Weight: 150 kg (for 150/220 fields), 215 kg (for 260/300 fields)
Program format: DXF
Lighting: LED with brightness control
Air requirement: 0.4 l/stroke at 6 bar
Optional features: QONDAC height-adjustable table, Wi-Fi, multimedia instructions
