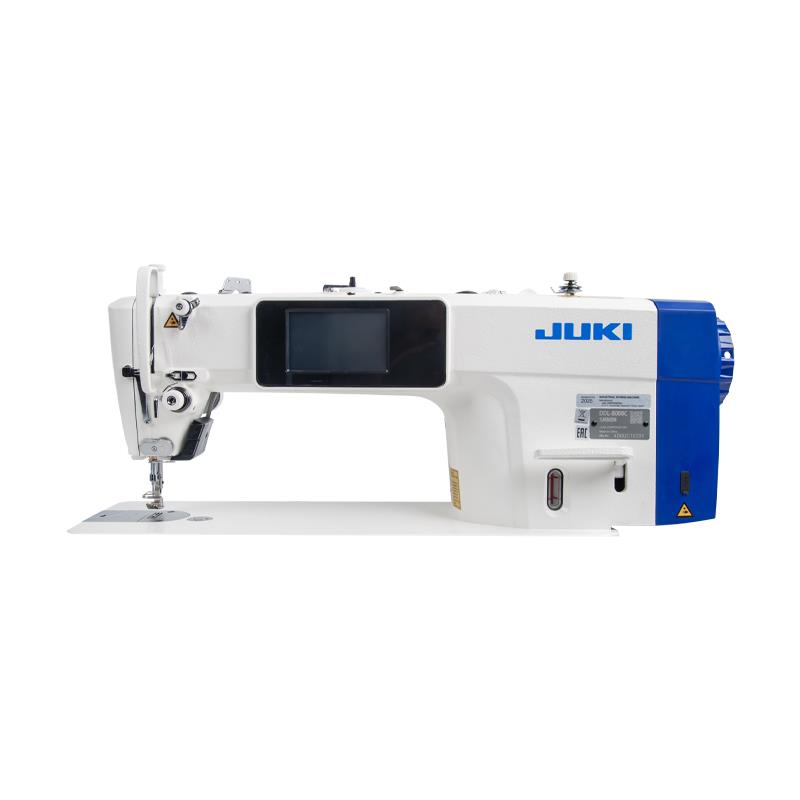

JUKI DDL-8000C Single-needle lockstitch machine with direct-drive

 JUKI DDL-8000C is a modern industrial lockstitch machine with bottom feed and a direct-drive motor. The machine is equipped with electronic stitch length control and automatic functions (thread trimming, presser foot lifting, needle positioning, backtacking). The thread trimming mechanism leaves a very short remaining thread, improving the sewing finish. The head construction reduces noise and vibration, while the lubrication system prevents oil stains. Standard equipment includes a control panel, LED lighting, and a knee lifter.

Technical specifications JUKI DDL-8000C
Feed system: bottom feed
Drive: energy-saving direct-drive
Maximum sewing speed: up to 5,000 sti/min (medium-weight materials), 4,000 sti/min (heavy-weight materials)
Stitch length: up to 5 mm (optionally 7 mm)
Presser foot lift: 9 mm automatic, 13 mm by knee lifter
Automatic functions: thread trimming, needle positioning, backtacking, presser foot lifting
Lubrication system: automatic
LED lighting with adjustable brightness
