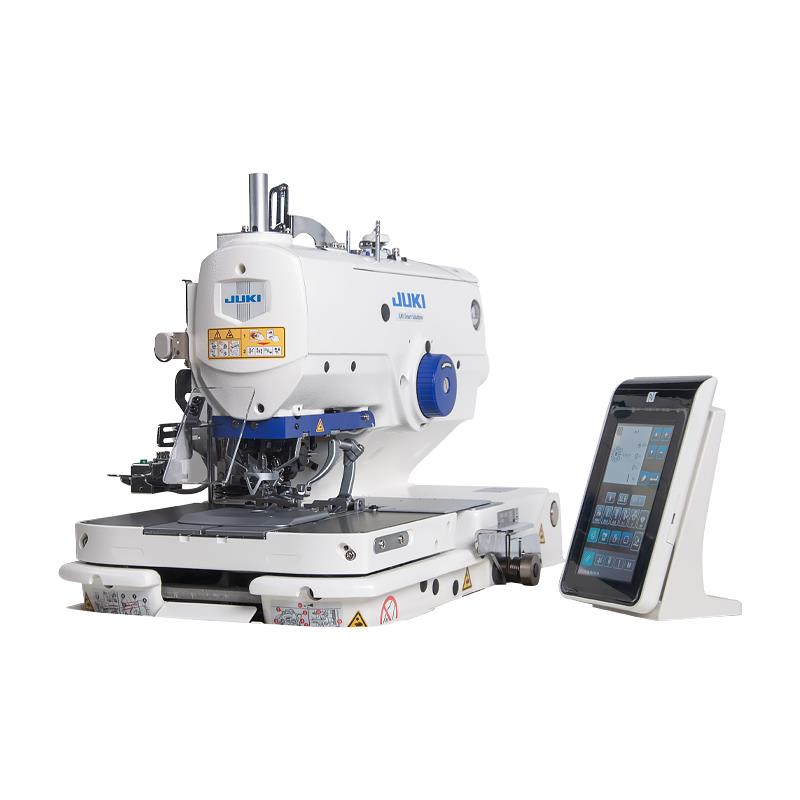

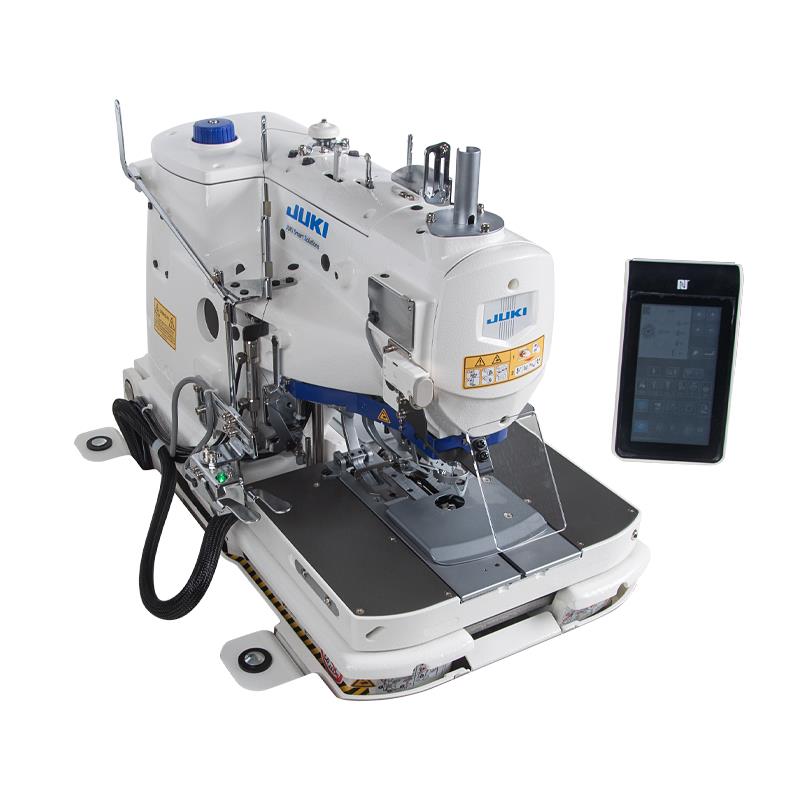

Juki MEB-3200C – Computer-controlled Eyelet Buttonholing Sewing System

The Juki MEB-3200C is a modern, computer-controlled eyelet buttonholing machine designed for maximum precision, productivity, and ease of use. It is widely applied in the production of men’s and women’s garments, jeans, and workwear. Equipped with a large color LCD touch panel, it allows quick selection of patterns and settings, as well as storage of up to 88 different sewing programs.

The machine features electronic thread tension control and automatic knife pressure adjustment, ensuring high-quality seams and reduced setup time. With NFC functions, data can be transferred wirelessly to an Android tablet or via USB, greatly simplifying production management.

The MEB-3200C also offers low energy consumption, quiet operation, and improved ergonomics – thanks to its semi-sunken machine head, newly designed thread path, and energy-efficient direct-drive motor. This solution increases productivity and ensures stable, repeatable quality in every production series.

Technical specifications

Stitch type: 1-needle, double chainstitch (with gimp)
Sewing speed: 400–2,200 stitches/min (100-stitch step adjustment)
Buttonhole length: 10–50 mm (depending on model)
Stitch width: 2.0–3.2 mm / 2.6–4.0 mm (depending on version)
Work clamp lift: 13 mm (max. 16 mm)
Cutting method: cut-before or cut-after knife, or without cutting
Control panel: color LCD with touch operation
Memory capacity: up to 88 sewing patterns (11 pre-installed asstandard)
Drive: direct-drive AC servo motor
Power supply: single-phase 100–120V / 220–240V, 3-phase 220–240V
Air consumption: 0.5 MPa, 6 dm³/min (8 cycles/min)
Dimensions: 1,060 × 790 × 1,230 mm
Weight: approx. 179 kg
