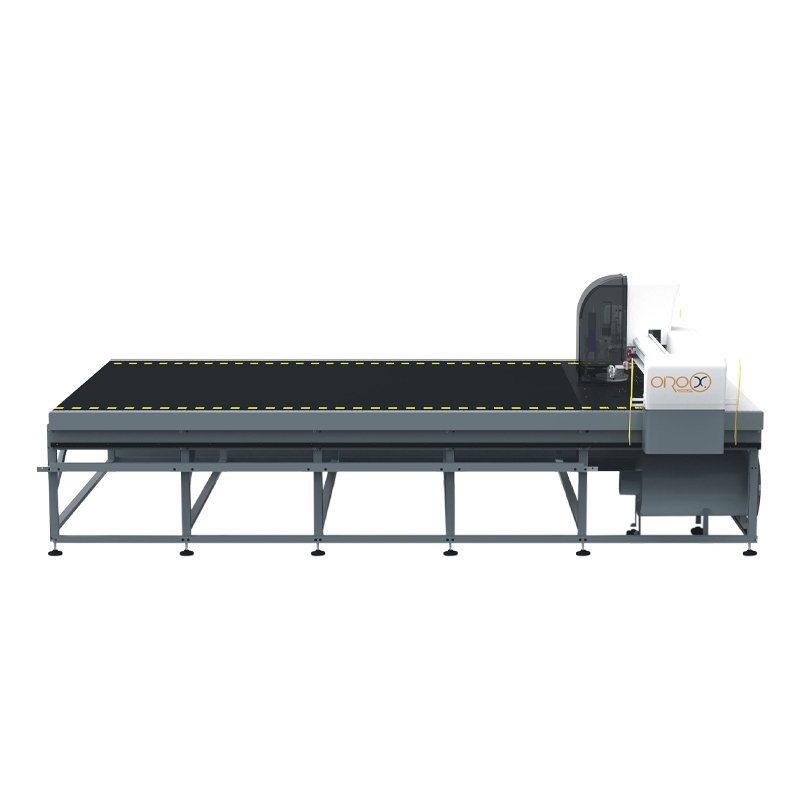

Orox Tailor Multilayer cutting machine

Our static fabric cutting machines, including our TAILOR models, are the flexible and customizable cutting system, perfect for small production, prototype, made-to-measure and sampling. These machines are designed to adapt to your specific cutting requirements, providing precise cuts for a wide range of fabrics. Our TAILOR models offer unmatched flexibility, allowing you to easily switch between cutting modes and adjust settings to suit your specific production needs. Whether you’re cutting patterns, markers, or single-ply fabrics, our static cutting machines deliver consistent, high-quality results.

OROX TAILOR represent an ideal solution for companies looking to improve their efficiency and productivity in cutting fabrics. Thanks to its automatic cutting technology, this machine allows for considerable time savings and minimizes material waste. Additionally, thanks to its user-friendly design, this machine requires fewer operators compared to manual cutting, thereby reducing labour costs.

Specifiation:
Effective cutting height: from single layer up to 3, 6, 8, 10 cm compressed
Effective cutting width: 160 / 180 / 200 / 220 cm
Effective cutting length: From 3 mt (base module) to 30 mt (add 1.5mt module)
Max. Power supply: 25 Kw single turbine
Average power consumption: 6 Kw
Electric requirements: Three phases +neutral 400V 50Hz+/- 10%
Axis speed: 90 mt/min
Acceleration: 0.8 G
Noisiness: <75 dB
Operator side: Left or Right

Features:
Pneumatic sharpening system – with grinding stone (5 or 7.3 cm diameter). running at 30.000 rpm.

Automatic knife flection control (FLESE – Intelligent Knife) – this accessory allows to always have the same figure repeated without defects or differences in the various layers of the mattress.

Interactive management of the parameters while cutting – our software automatically manages every aspect of the cut to ensure the best possible result. (speed/vacuum).

Auto diagnostic program to check possible machine’s anomalies.

Plate pressure managed automatically by the software while cutting avoiding fabric stress.
