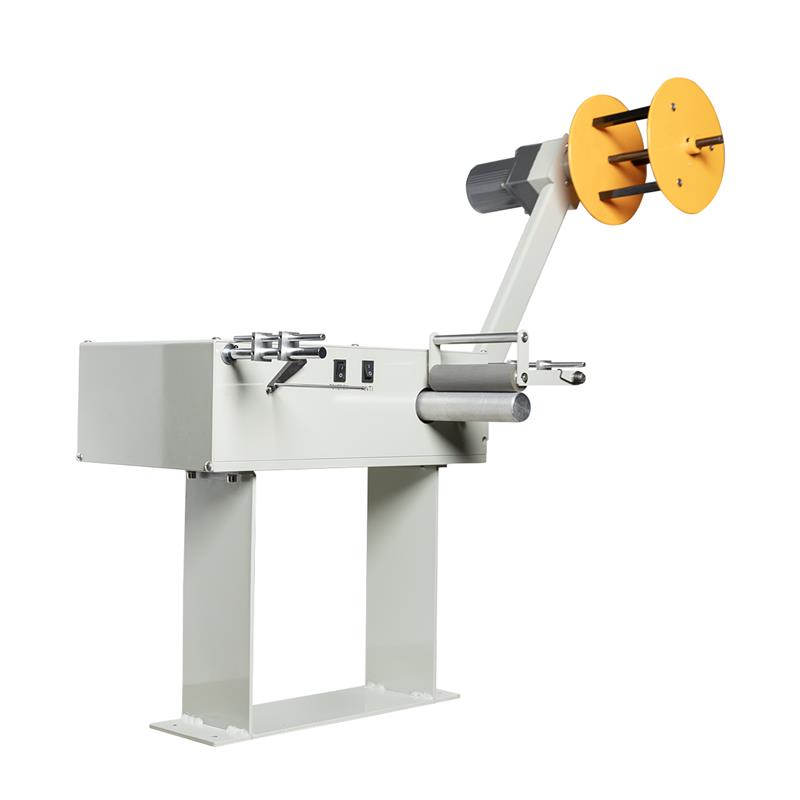

ULTIMA SF-300S – tape feeder for sewing machines and cutting equipment

ULTIMA SF-300S is an automatic feeding device designed for supplying tapes, elastic bands, labels and other narrow materials to sewing machines and cutting equipment. The feeder improves material handling during production, helps prevent twisting and tangling and reduces the need for manual unwinding by the operator.

The unit is equipped with a microswitch system which automatically activates the feeding mechanism according to the operation of the connected machine. This allows material to be supplied continuously as required during sewing or cutting.

SF-300 is suitable for materials up to 100 mm wide and can be used with braided tapes, elastic bands, textile tapes, labels and other narrow strip materials. It is particularly useful in repetitive production processes where consistent material feeding can improve operator efficiency and workflow.

TECHNICAL SPECIFICATIONS:
• Device type: automatic computerized tape feeder
• Feeding mode: automatic
• Maximum feeding width: 100 mm
• Motor speed: 1300 rpm
• Voltage: 110 / 220V
• Frequency: 50 / 60 Hz
• Packing dimensions: 450 x 445 x 405 mm
• Weight: 22 kg

APPLICATIONS:
• Braided tapes
• Textile tapes
• Elastic bands
• Labels and tags
• Other narrow strip materials

FUNCTIONS:
• Automatic material feeding

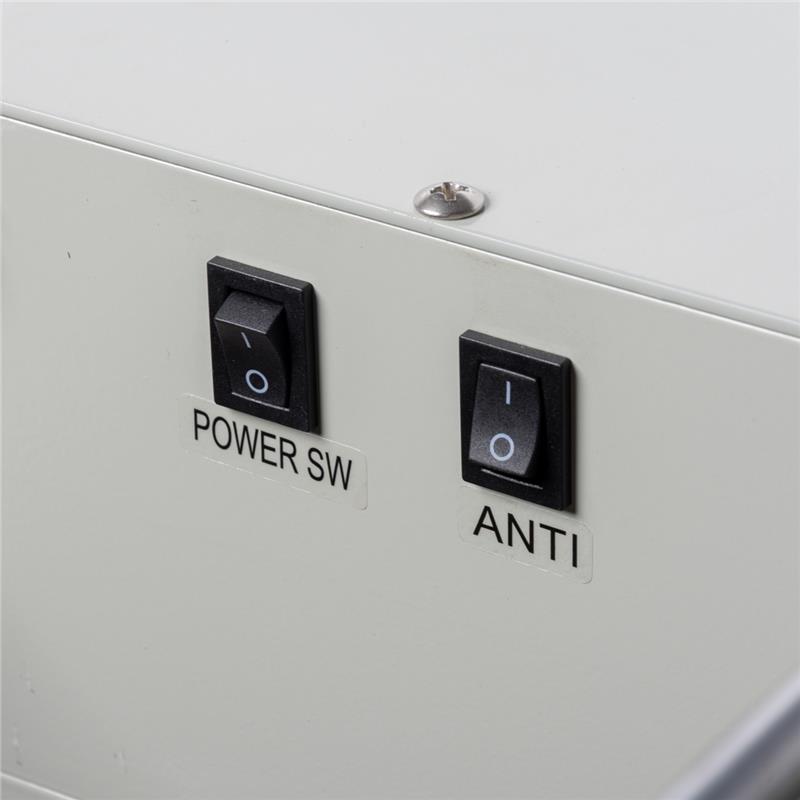

• Microswitch controlled operation
• Automatic feeding according to machine operation
• Helps prevent material twisting and tangling
• Suitable for use with sewing machines
• Suitable for use with tape cutting equipment
