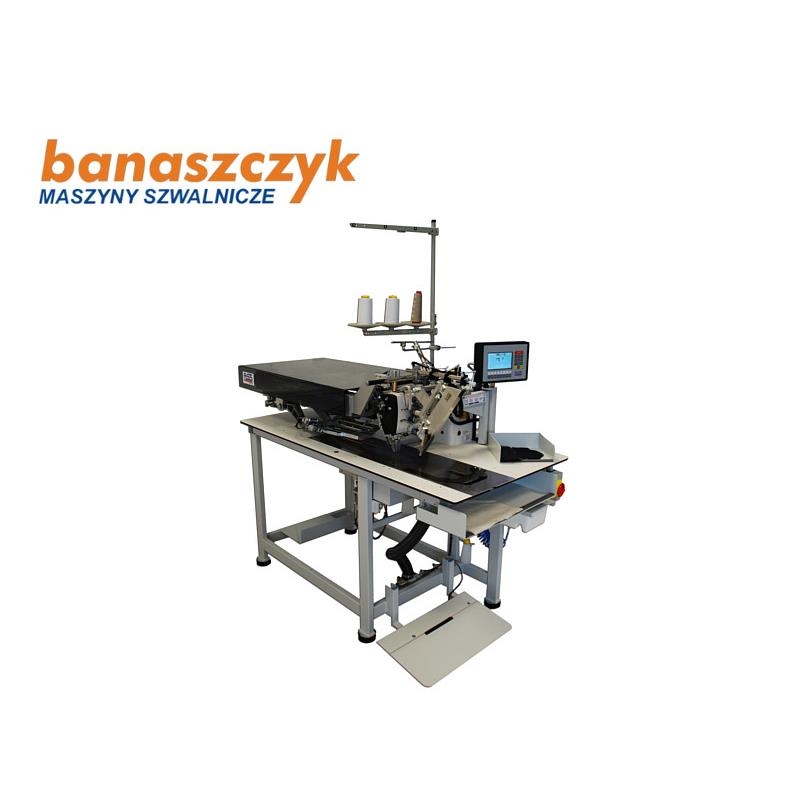

ASS BASS 3050 pocket welting machine


ASS_BASS3050/KPL

ASS

New product


The BASS 3050 is a universal automatic welt pocket unit. This unit can sew all kinds of common welt pockets: straight with or without flap. BASS 3050 sews at a high speed....

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

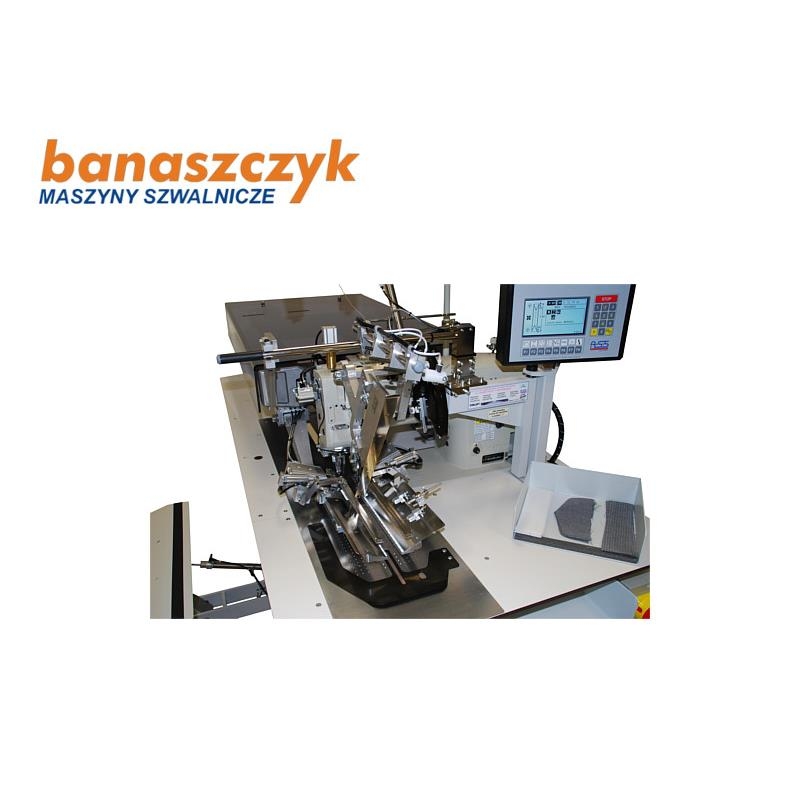

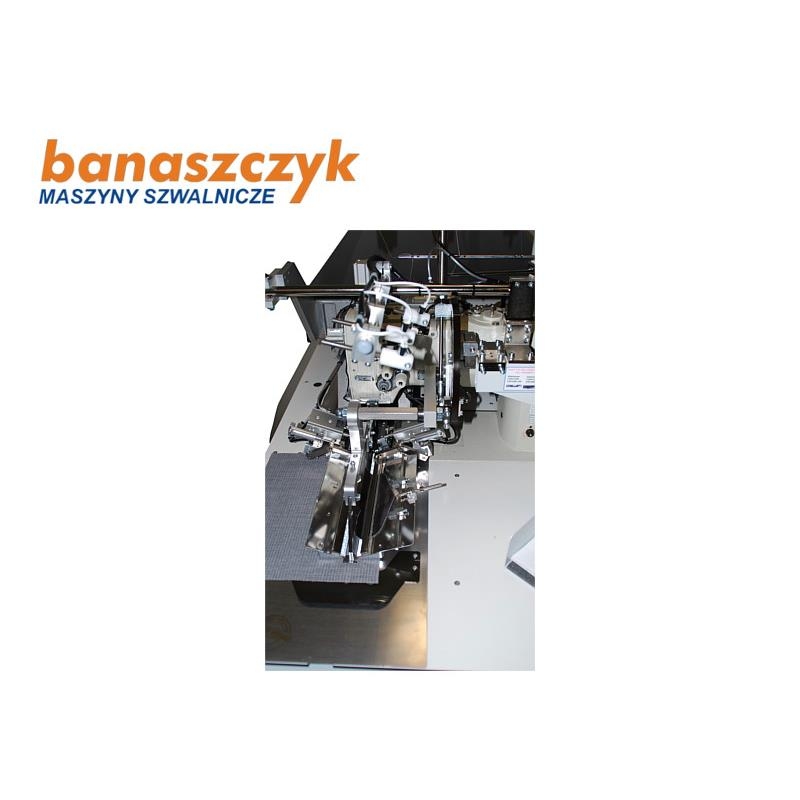

The BASS 3050 is a universal automatic welt pocket unit. This unit can sew all kinds of common welt pockets: straight with or without flap.

BASS 3050 sews at a high speed. Clamp transfer are controlled fully automatically by step motor. The center knife is driven separately by an electric motor.
Product features:
• Freely programmable control with a memory of 40 seams
• Pocket length from 20 to 200 mm steps of 2mm available
• Needle gauge from 8 mm to 30 mm in
• Stitch length, sewing speed and transfer speed can be programmed individually
• Each pocket seam can be programmed with true back tack or condensed stitches
• Automatic flap sensing by photocell
• 3 separate programmable laser beam marking lights for precise and easy loading

Standard features:

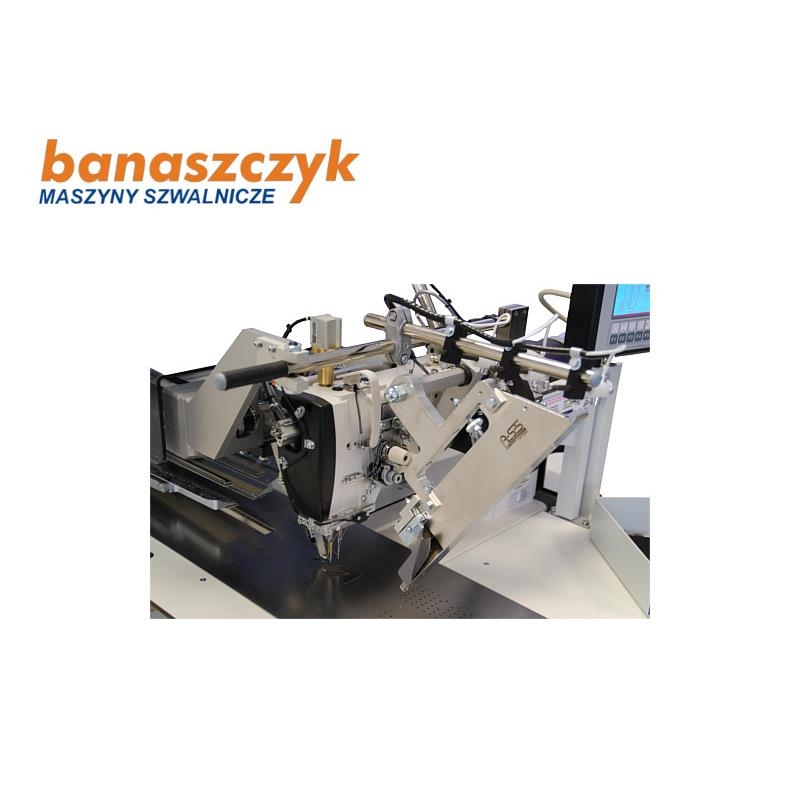

• Two-needle double lockstitch sewing head, can be tilted for service
• Thread trimming device
• Directdrive motor

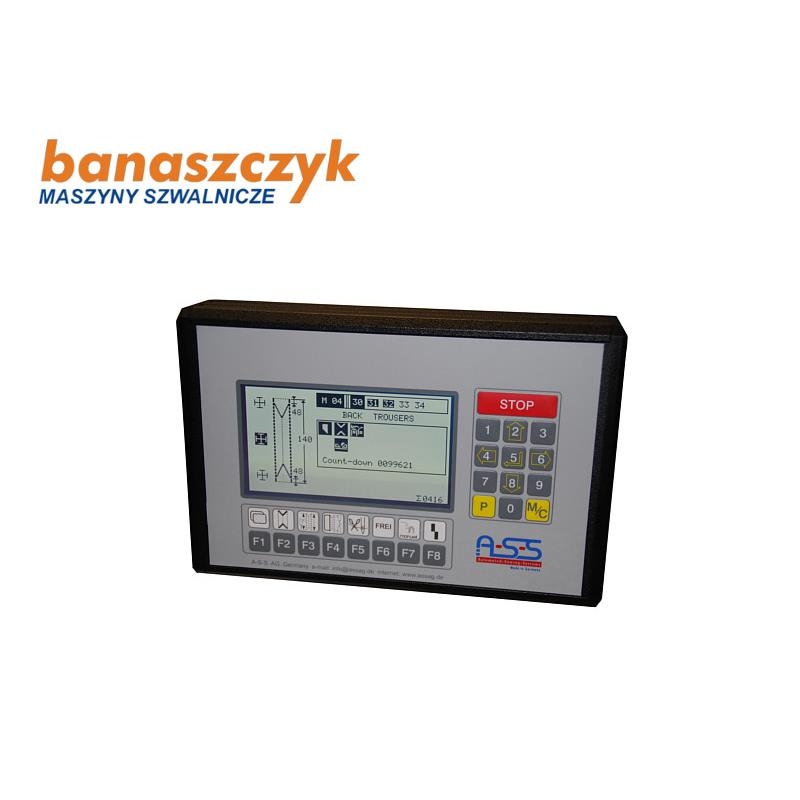

• Microprocessor control with LCD display and memory chip for data backup
• Main clamp drive via regulated step motor with automatic length control from 0 to 200 mm (optional 240 mm)
• Corner cutting adjustment by up to 10 mm in increments of 0.1mm
• Lateral corner knife adjustment through excenter
• Corner knife holder with adjustable cutting width
• Lowering sequence of the transfer clamp programmable
• Each seam start and end can be programmable with back tackor condensed stitches
• Double piping attachment
• Clamp backfeed inhibitor
• Needle thread monitor
• Needle gauge : 8 to 30 mm in increments of 2 mm

Technical data
Dimensions:
Length 1650 mm
Width 800 mm
Width with stacker 1170 mm
Height 1300 mm
Weight Standard features 200 kg
Compressed Nominal pressure 20 NL / 6 bar
Power supply, Nominal voltage 230V, 50 / 60 Hz
Power 0,7 KW
Alternating voltage 230V, 50 / 60 Hz

Stitch length 0,5 - 3,0 mm
Stiches per min. max.3000
Two needles, needle system 2135-85, 90-100
Needle gauge (2 mm- Steps) 8 mm - 30 mm
Daily output (10 hours) - 2400 -3000 pcs
