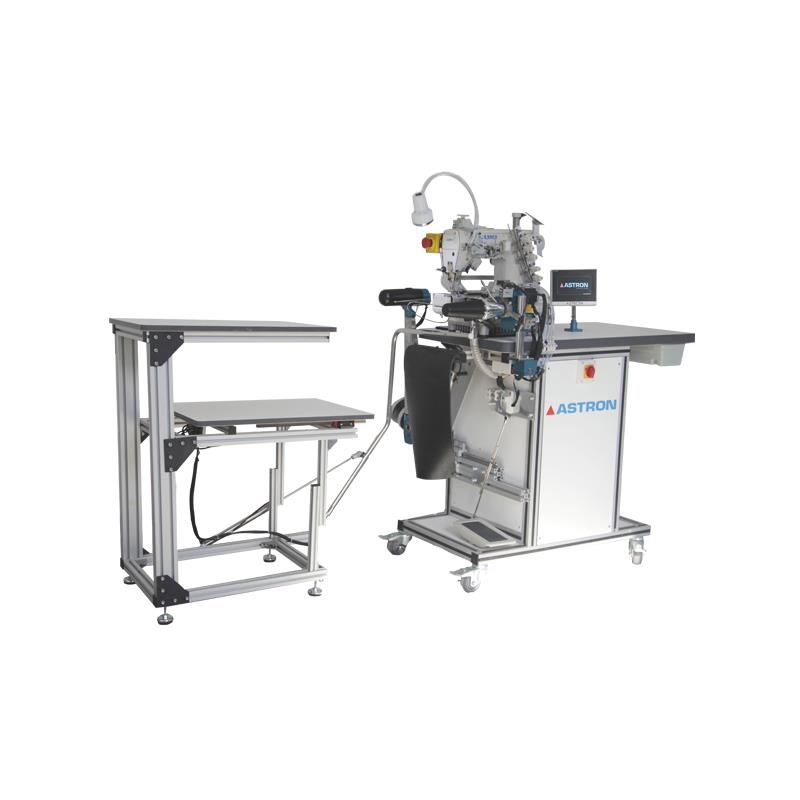

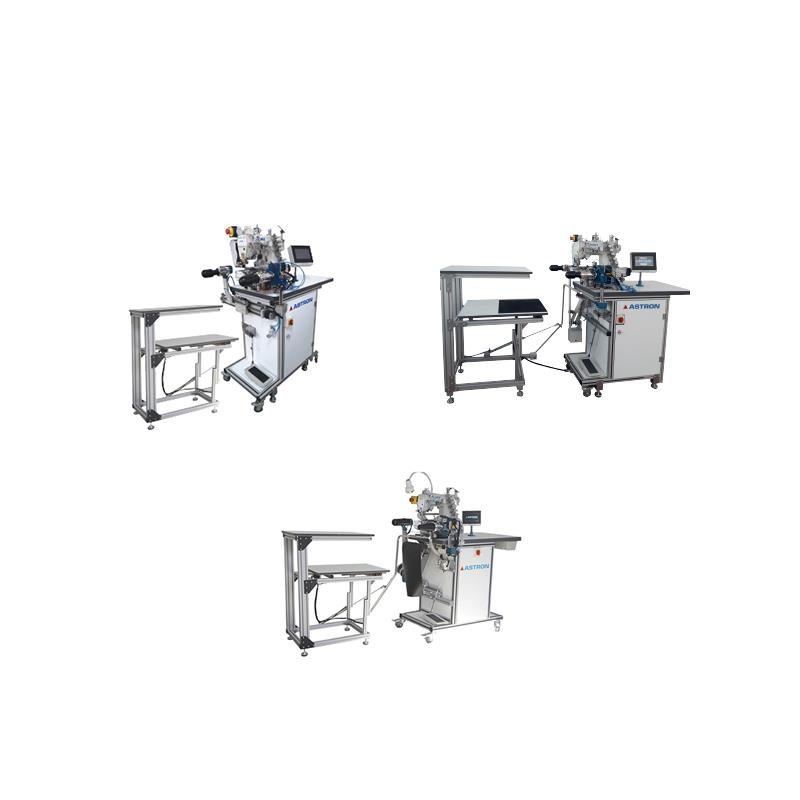

AST-7923/ERDO/M-PLC2 two needle coverseam bottom hemming automat


AST-7923/ERDO/M-PLC2

New product


This modern automatic machine, dedicated to T-Shirt hemming, is a machine that will not only speed up the sewing process, but also allow for significant savings resulting...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

This modern automatic machine, dedicated to T-Shirt hemming, is a machine that will not only speed up the sewing process, but also allow for significant savings resulting from the automation of production. The machine is equipped with an energy-saving motor with direct drive, which allows you to reduce the cost of energy consumption by 40% compared to traditional drives. The device can work with material with a circumference of 40 to 70cm. The width of the hemming is adjustable in the range of 17-30mm. The machine has a convenient and intuitive control panel with a touch LCD screen. Additional features that improve everyday work include a counter of hemmed up elements or a thread break sensor. It is also worth mentioning stitch alignment feature thanks to sensor controlled system and about the hemming correction feature by means of roller system at the start of seam. These solutions guarantee perfect seam quality. The hemmed elements are picked up and automatically placed thanks to a special system that further improves the work with the device.

Specification of the coverseam bottom hemming automat:

  • Direct drive motor
  • Efficiency: 2700-3200 items/8 hours
  • Hemming adjustable attachment system between 17-30mm
  • Tubular able to work between 40-70cm
  • Stitch alignment feature thanks to sensor controlled system
  • Hemming correction feature by means of roller system at the start of seam
  • Control panel with LCD touch screen
  • Daily piece counter
  • Thread break sensor
  • Automatic stacking system
