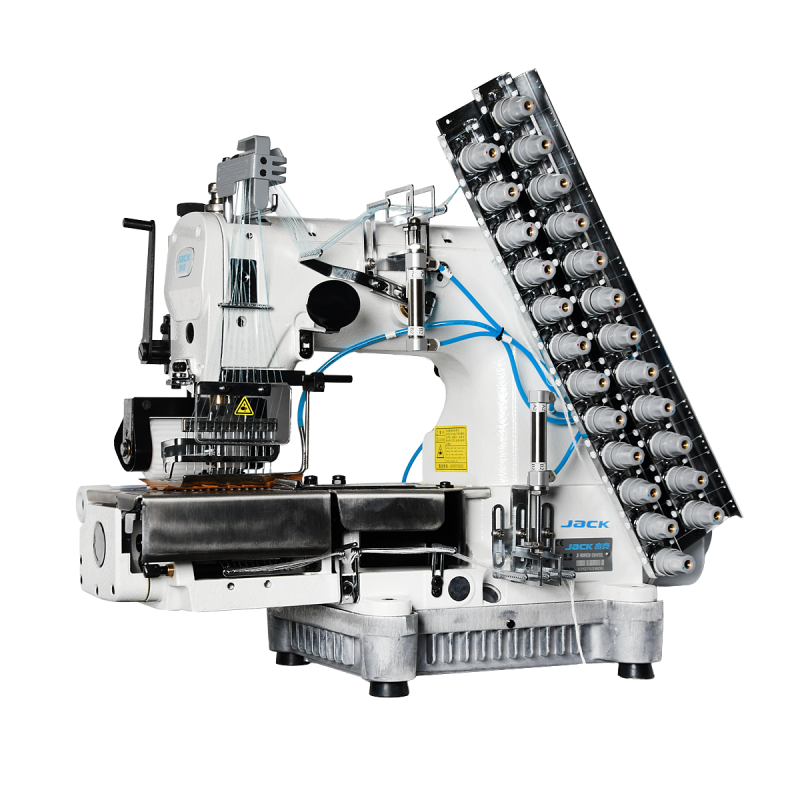

JACK JK-8009VCDII-12064P/UTL – 12-needle chainstitch attaching machine with puller

JACK JK-8009VCDII-12064P/UTL is an industrial 12-needle chainstitch machine designed for attaching elastic bands and tapes and for producing multiple parallel rows of stitching in a single sewing operation. It is suitable for the production of underwear, sportswear, trousers, stretch garments and other textile products requiring consistent elastic attachment or multiple parallel seams.

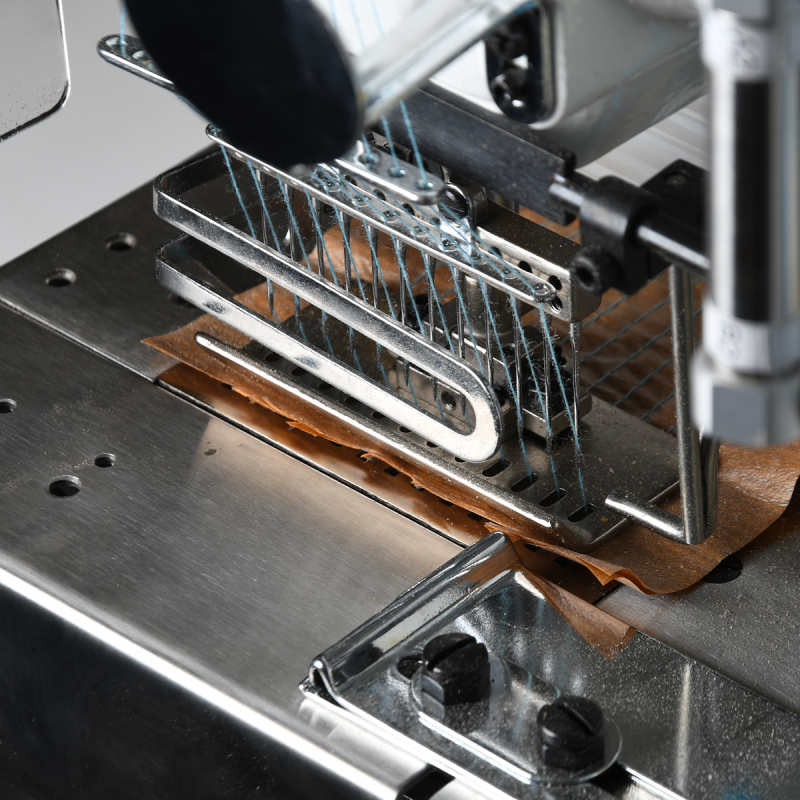

The 12-needle, 24-thread configuration allows the machine to produce 12 parallel rows of chainstitch simultaneously. A puller located behind the presser foot supports material feeding, providing smooth and consistent transport while helping to reduce shifting and stretching of individual material layers during sewing.

The UTL version is equipped with automatic thread trimming and pneumatic presser foot lifting. These automatic functions improve productivity and reduce the number of manual operations required from the operator. Automatic central lubrication ensures proper lubrication of the machine mechanisms during intensive production.

JACK JK-8009VCDII-12064P/UTL is particularly suitable for high-volume production where high efficiency, repeatable stitching and reliable feeding of elastic materials are required.

TECHNICAL SPECIFICATIONS:
• Machine type: 12-needle chainstitch / elastic attaching machine
• Number of needles: 12
• Number of threads: 24
• Needle gauge: 6.4 mm
• Stitch type: chainstitch
• Stitch length: 1.7–4.0 mm
• Maximum sewing speed: 3500 stitches/min
• Presser foot lift: 8 mm
• Needle system: UO113 14–16#
• Feeding system: bottom feed with puller assistance
• Lubrication: automatic central lubrication
• Net / gross weight: 52.5 / 57.5 kg

FUNCTIONS:
• Automatic thread trimming
• Pneumatic presser foot lifting
• Puller-assisted material feeding
• Automatic central lubrication
• Simultaneous production of 12 parallel stitch rows
• Suitable for elastic bands, tapes and stretch materials
• Possibility to use a reduced number of needles depending on the sewing operation

APPLICATIONS:
• Elastic attaching
• Tape attaching
• Underwear
• Sportswear
• Trousers and waistbands
• Stretch garments
• Multiple parallel decorative and construction seams
