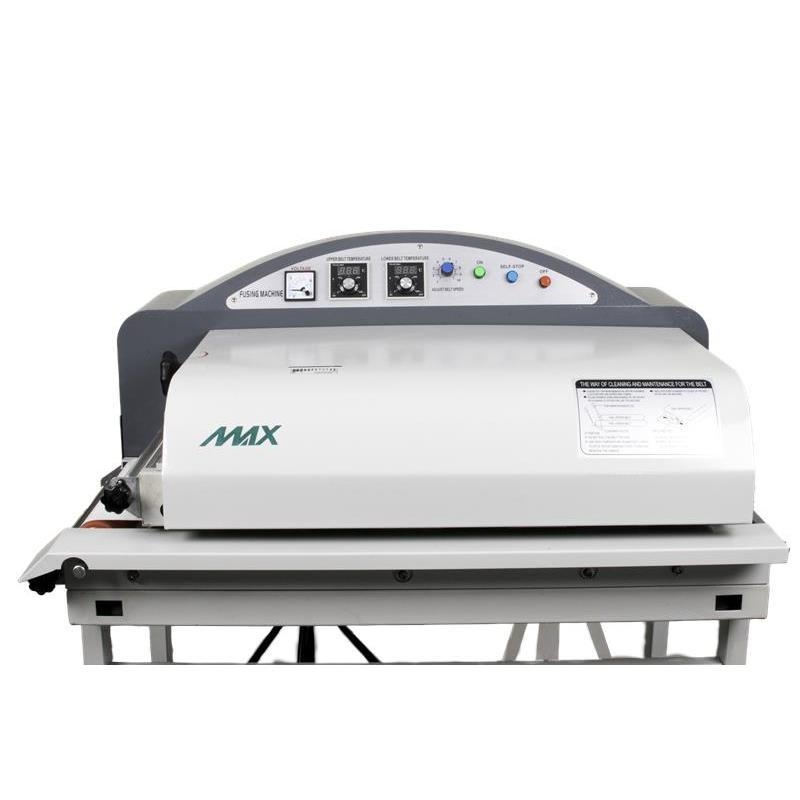

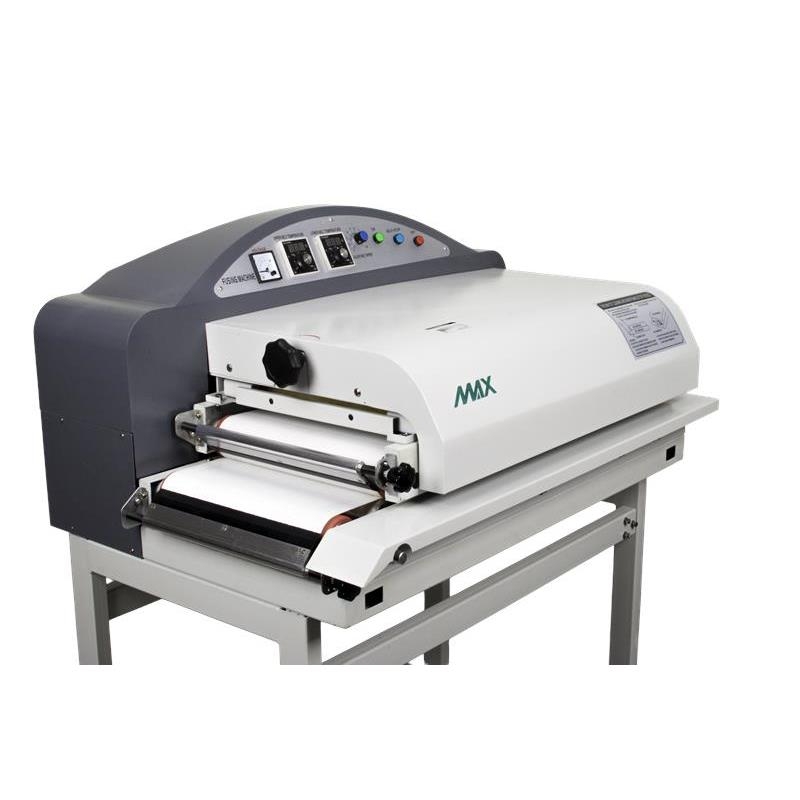

MAX F300 fusing machine


MAX_F300

MAX

New product


Fusing machine with 30cm working width and with one side open. Continuous work, belt fusing machine,working width 300 mm, with one side open, equipped with two tables...

More details

Ask for price

(+48) 42 212-14-50

Add to wishlist

Fusing machine with 30cm working width and with one side open.

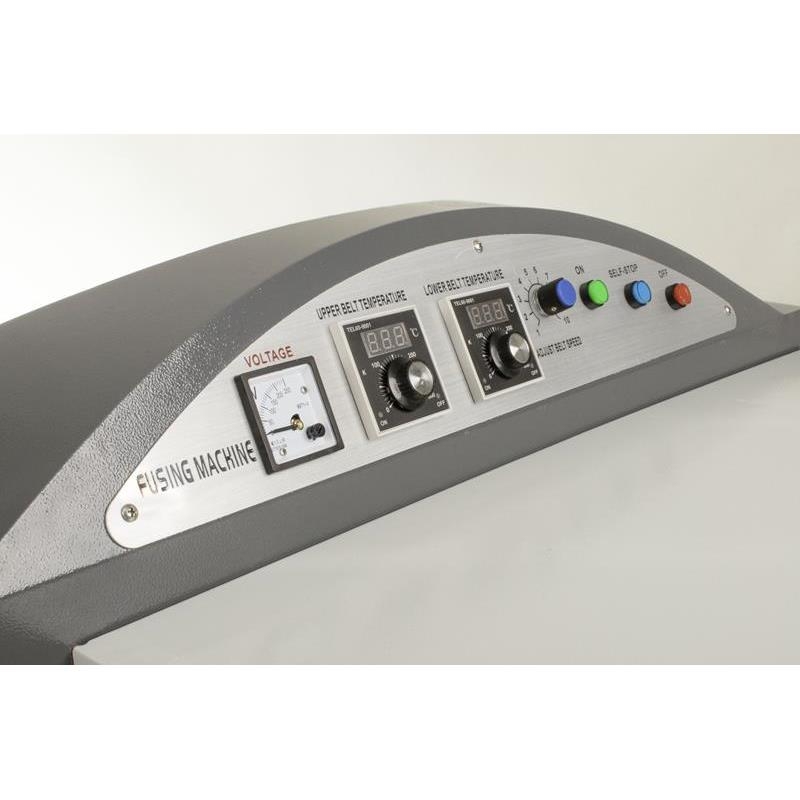

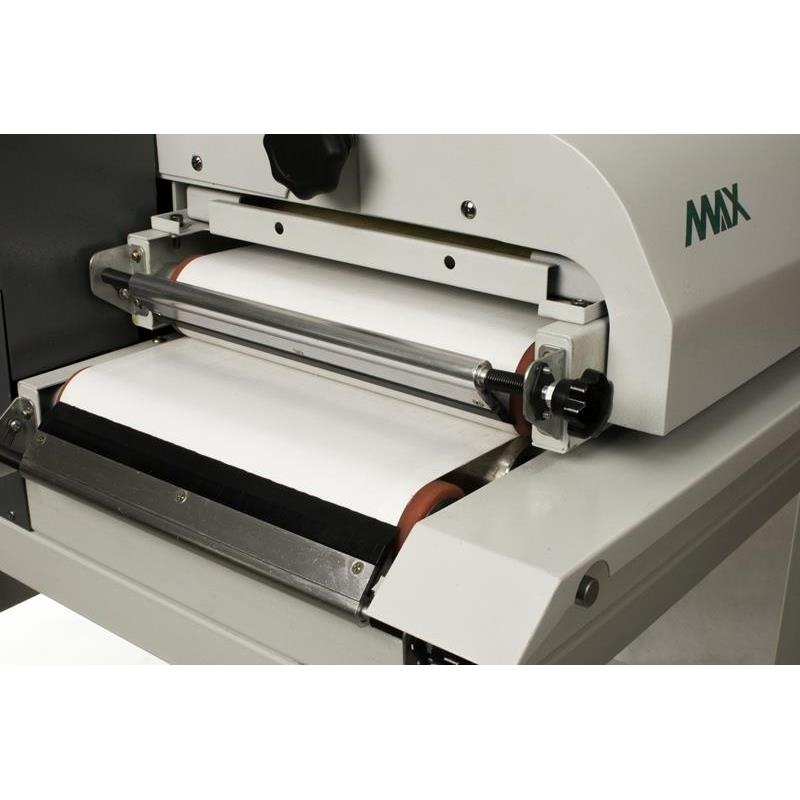

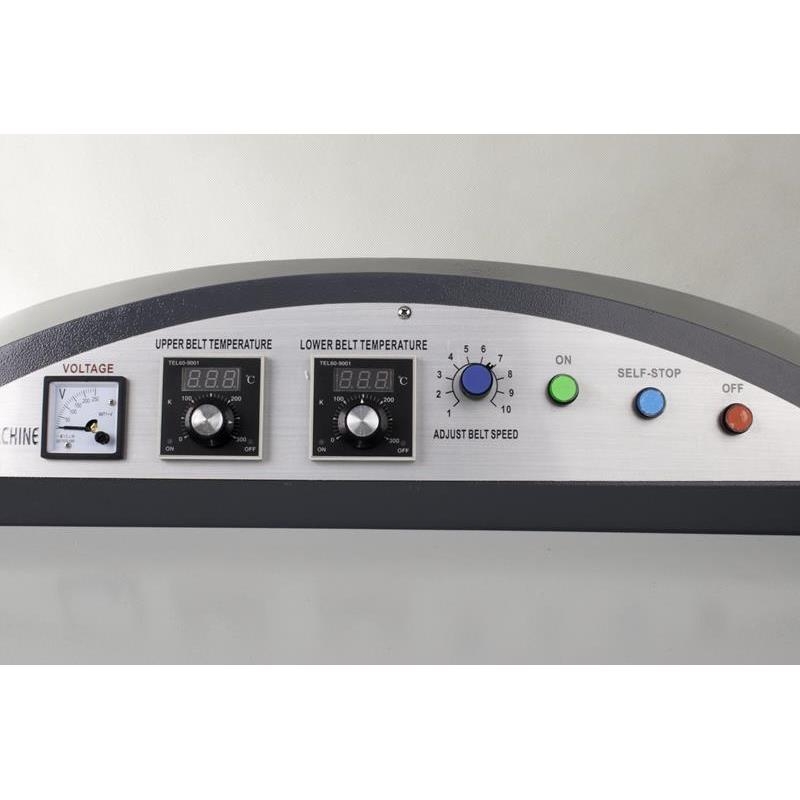

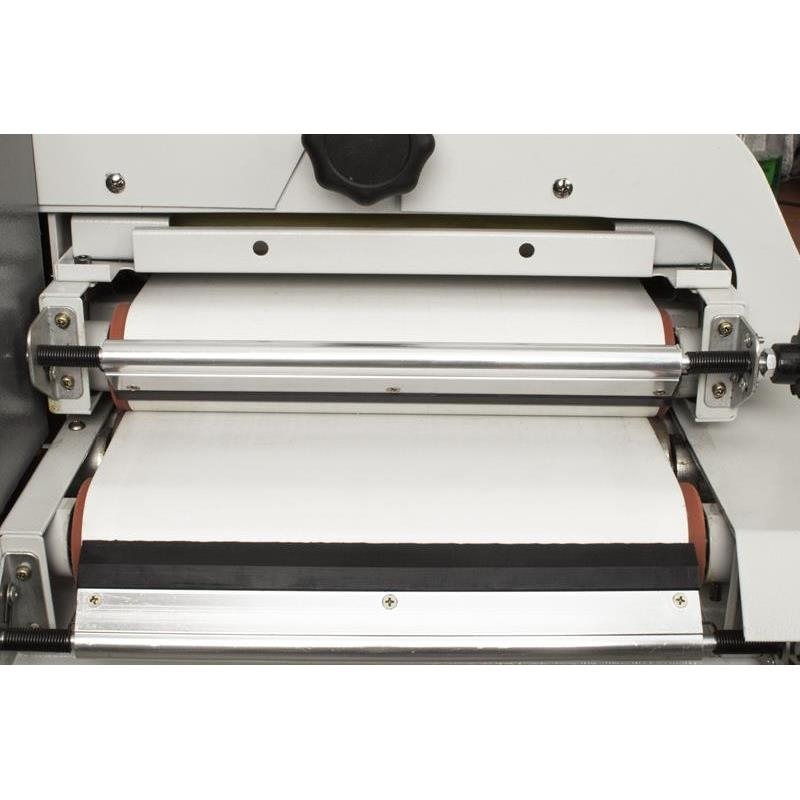

Continuous work, belt fusing machine,working width 300 mm, with one side open, equipped with two tables (in-table and out-table) and stand on wheels. Maximum heating element power 4kW, fully adjustable temperature up to 220C, temperature is regulated by two independent thermostats. Adjustable heating time (belt speed) form 0 to 10 m/min. Maximum pressure is 1kg/cm2. Machine is equipped with delay-off system for prevent teflon belt damage.

Technical data:
Power supply: 380V / 50Hz
Motor power: 350 W
Heating element power: 4 kW
Preassure: 0~1 kg/cm kw.
Speed: 0~10 m/minTemperature: 220 st. C [max]
